Silicates Minerals

When we look at the Earth’s crust, we are overwhelmingly looking at silicates. Comprising over 90% of the crust, silicate minerals are the fundamental building blocks of almost all rock types. However, for exploration geologists, silicates are far more than just “background noise.” Understanding their structures, stabilities, and how they react to hydrothermal fluids is the key to mapping alteration halos and vectoring toward economic mineral deposits.

The foundation of every silicate mineral is the silica tetrahedron, chemically expressed as SiO4(4-). In this geometric arrangement, one silicon atom is surrounded by four oxygen atoms. How these tetrahedra link together—or remain isolated—determines the entire structural classification of silicate minerals, dictating their physical properties, weathering resistance, and behavior in hydrothermal systems.

Here is the comprehensive breakdown of the major silicate groups and their significance in field geology and mineral exploration.

1. Nesosilicates (Isolated Tetrahedra)

In nesosilicates, the silica tetrahedra do not share any oxygen atoms with each other; they are completely isolated and bonded together by interstitial cations like iron and magnesium. These are typically high-temperature minerals formed early in magmatic crystallization.

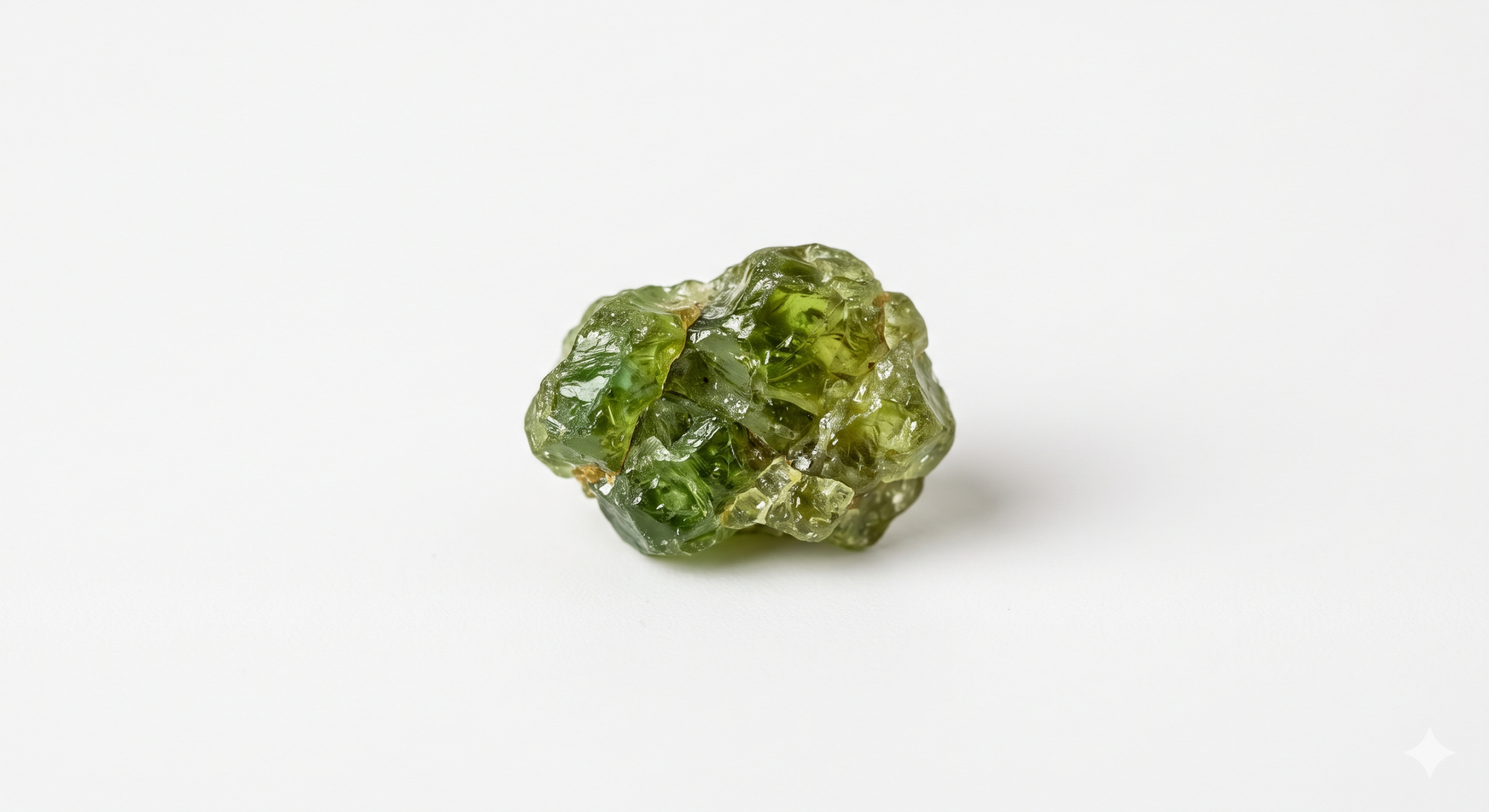

• Olivine: The classic high-temperature mineral dominating ultramafic rocks. In economic geology, olivine’s instability in the presence of water is its most important trait. Its hydration leads to serpentinization, a crucial process that creates massive structural traps and drives the formation of unique mineralized systems.
• Garnet Group: While common in metamorphic rocks, specific garnets (like andradite and grossular) are the primary indicators of Skarn deposits, acting as the main gangue minerals adjacent to massive sulfide lenses or porphyry intrusions.
• Zircon: Highly resistant and incredibly useful for U-Pb geochronology, helping geologists date the exact timing of magmatic and hydrothermal events.

2. Sorosilicates (Double Tetrahedra)

Sorosilicates feature two tetrahedra sharing a single apical oxygen. While less common as primary magmatic minerals, they play a massive role in hydrothermal alteration.

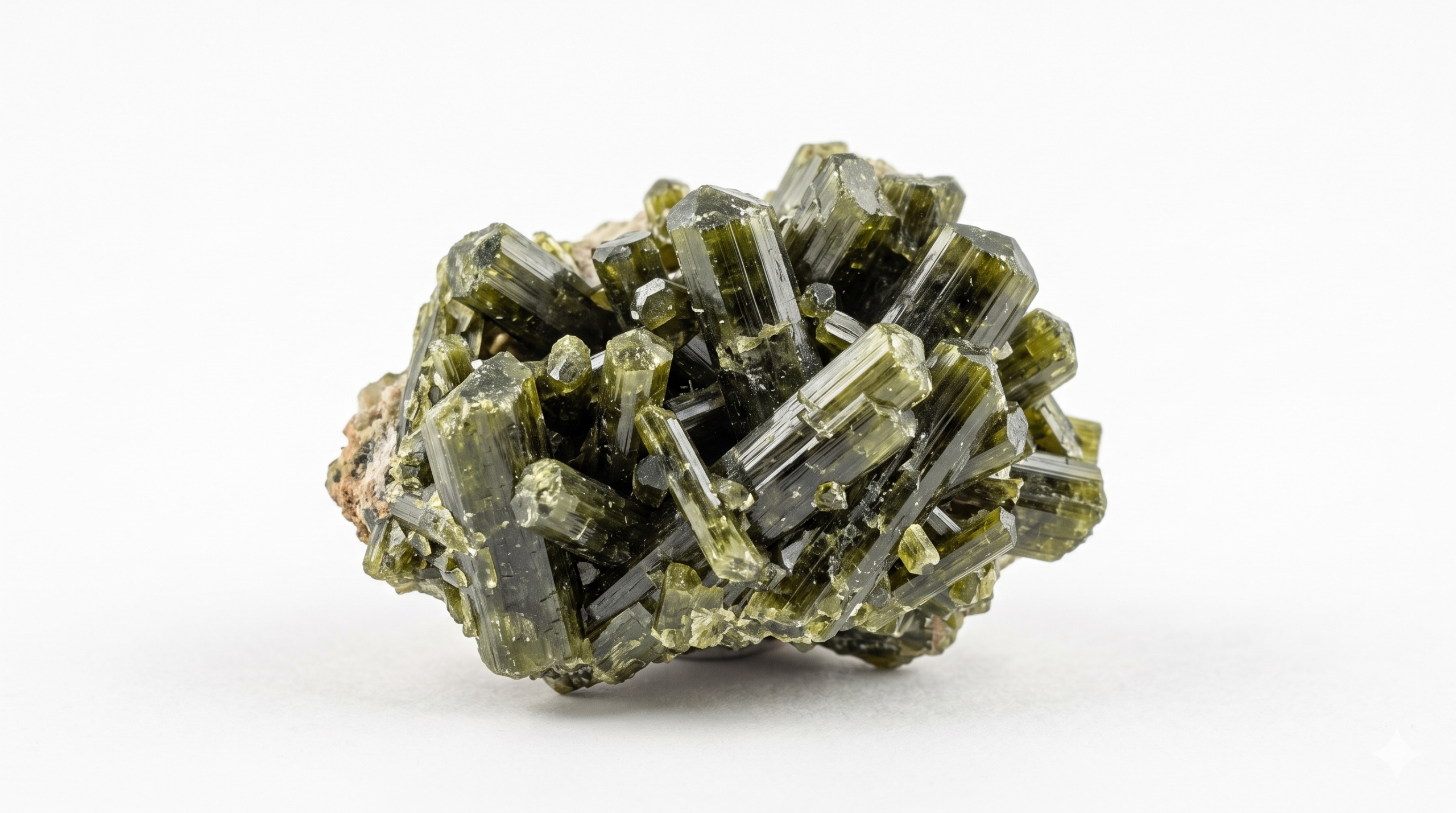

• Epidote: This is the flagship mineral of propylitic alteration. When mapping porphyry copper or epithermal gold systems, the appearance of abundant green epidote replacing primary plagioclase or hornblende marks the outermost, cooler margins of the hydrothermal system, pointing geologists toward the hotter core.

3. Inosilicates (Chain Silicates)

Inosilicates form when tetrahedra link together in continuous chains. They are divided into single-chain and double-chain structures, deeply influencing the texture of mafic and intermediate rocks.

• Pyroxenes (Single Chain): Minerals like augite and diopside exhibit a blocky cleavage. They are primary drivers in mafic magmatism and key components in layered intrusions hosting magmatic sulfide deposits.

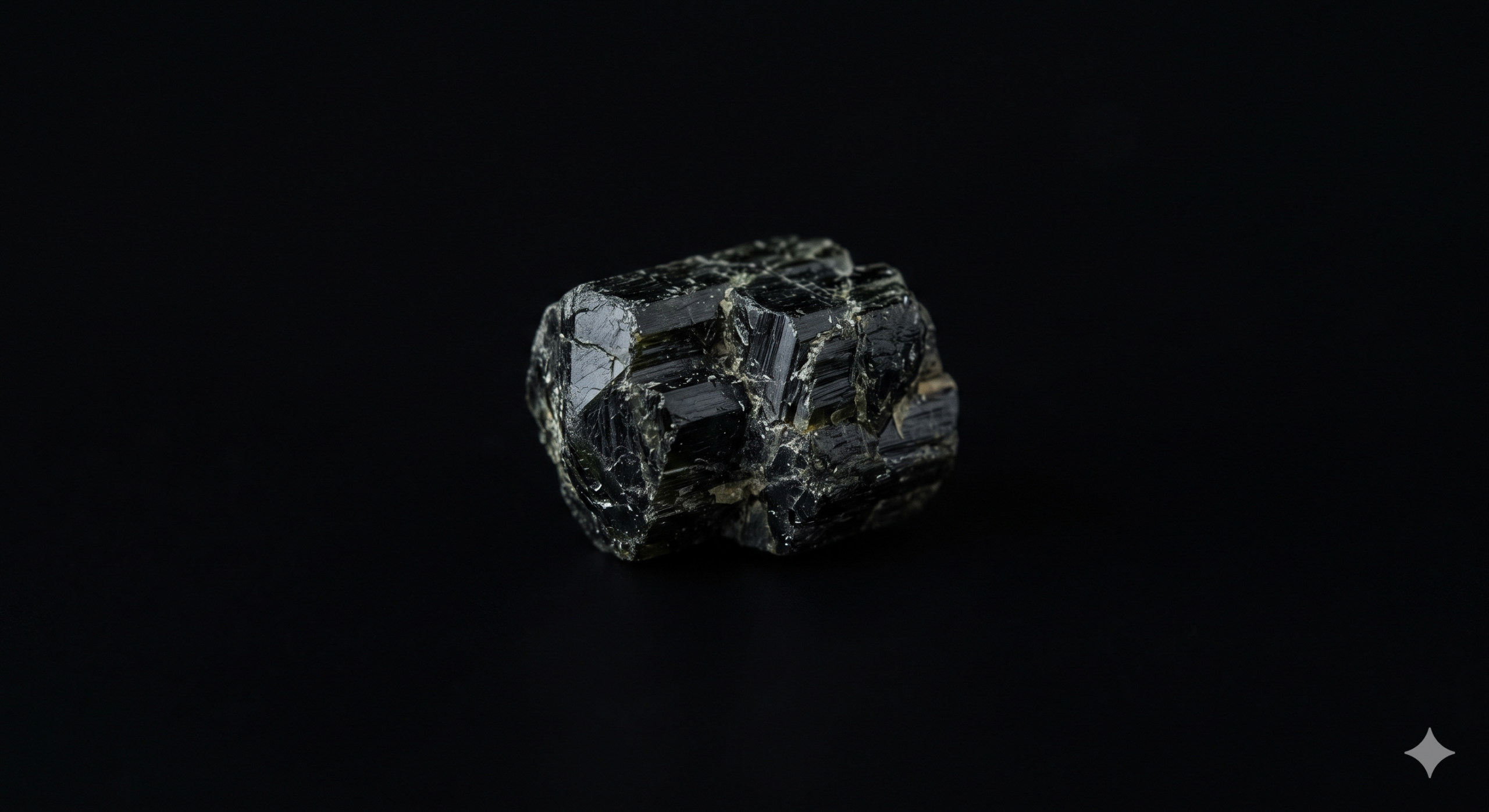

• Amphiboles (Double Chain): Hornblende and actinolite show a more elongated, prismatic cleavage. The presence of the OH- group in their structure indicates the increasing role of water in the magmatic system. The alteration of primary pyroxene to secondary amphibole (uralitization) is a classic indicator of fluid interaction.

4. Phyllosilicates (Sheet Silicates)

For the exploration geologist, phyllosilicates are arguably the most critical group. Their continuous two-dimensional sheets of tetrahedra give them perfect basal cleavage, and they are the primary constituents of almost all major hydrothermal alteration zones.

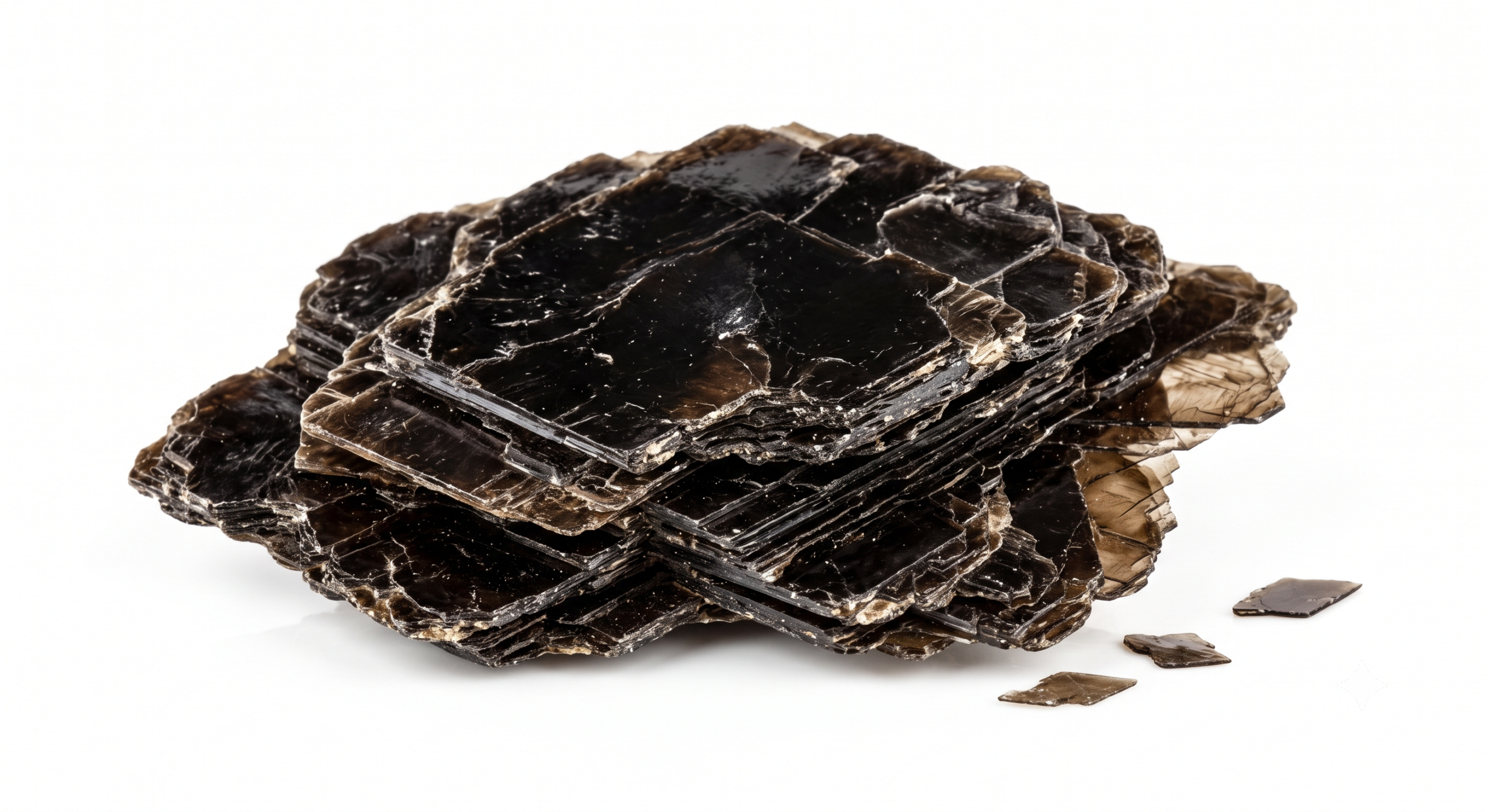

• Micas (Biotite and Muscovite): Primary magmatic micas are common, but secondary (hydrothermal) biotite is the ultimate indicator of the hot, potassic core in porphyry systems.
• Sericite: Fine-grained muscovite (sericite) defines the highly destructive phyllic alteration zone, typically overprinting earlier potassic zones as the system cools and fluids become more acidic.
• Chlorite: The constant companion of epidote in propylitic zones and a key alteration product of mafic minerals.
• Clay Minerals: Smectite, kaolinite, and illite define the argillic and advanced argillic zones. Mapping these clays is essential for locating the boiling horizons in epithermal precious metal systems.

5. Tectosilicates (Framework Silicates)

In tectosilicates, every oxygen atom is shared between adjacent tetrahedra, creating a robust, three-dimensional framework. These are the most abundant minerals on Earth and the most common gangue minerals in ore deposits.

• Feldspar Group: Divided into plagioclase (calcium-sodium) and alkali feldspars (potassium-sodium). The hydrothermal precipitation of secondary K-feldspar (orthoclase) is the hallmark of high-temperature potassic alteration in magmatic-hydrothermal systems.

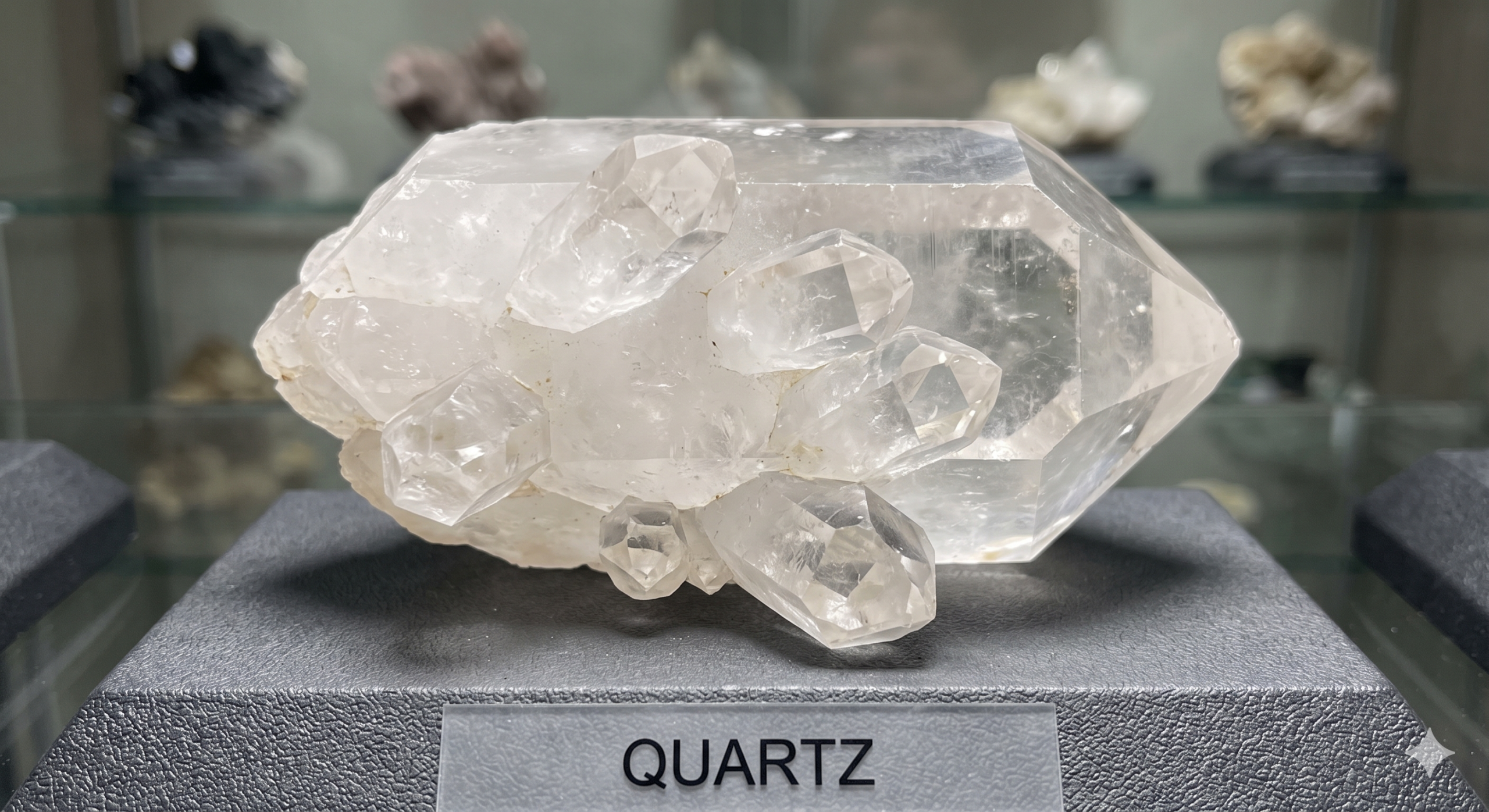

• Quartz: The ultimate survivor. As the lowest-temperature mineral in Bowen’s Reaction Series, it is highly resistant to weathering. More importantly, hydrothermal quartz is the primary host for gold, silver, and base metal veins. Recognizing specific quartz textures (vuggy, crustiform, colloform) is a direct vectoring tool for understanding fluid boiling and metal precipitation mechanisms.

6. Cyclosilicates (Ring Silicates)

In cyclosilicates, the silica tetrahedra link together to form closed rings, most commonly in six-membered configurations Si6O18(12-). While not as volumetrically abundant in the crust as framework or sheet silicates, this group hosts some of the most critical indicator minerals for highly evolved magmatic and specific hydrothermal environments.

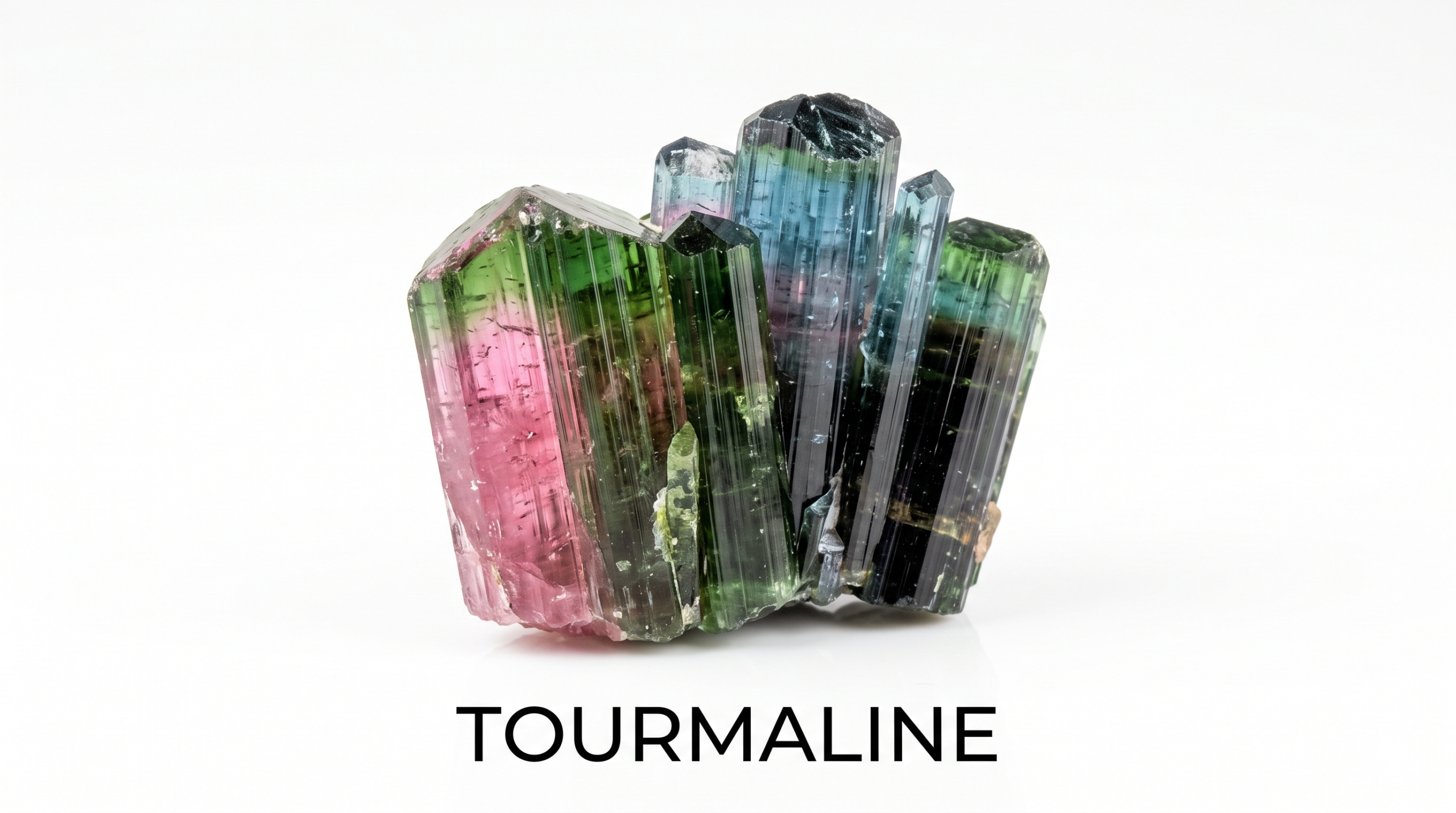

• Tourmaline: For the exploration geologist, tourmaline is the absolute star of the cyclosilicate group. It is a complex borosilicate that is mechanically and chemically highly resistant. More importantly, the presence of hydrothermal tourmaline (tourmalinization) is a major vector in several ore systems. Tourmaline breccia pipes are classic, high-energy features of copper-gold porphyry systems, and massive tourmaline alteration is a key footprint in many VMS and orogenic gold deposits, indicating significant boron metasomatism.
• Beryl: The primary ore of beryllium and the host of gemstones like emerald and aquamarine. Beryl is a classic indicator mineral for highly fractionated, incompatible-element-rich pegmatite systems and greisen alteration zones associated with tin-tungsten mineralization.
