The Oxide Minerals: Supergene Caps and Magmatic Heavyweights

In the geological record, oxide minerals form when elements combine directly with oxygen. For the exploration geologist, oxides represent two completely different but equally critical environments: the primary crystallization of dense metals in deep magmatic chambers, and the secondary, highly weathered supergene caps of primary sulfide ore bodies.

Understanding the oxide zone is not just an academic exercise. In 3D resource modeling, strictly defining the boundary between the upper oxide zone and the lower sulfide zone is a critical geometallurgical parameter, as it completely dictates the metallurgical extraction method (e.g., heap leaching for oxides vs. flotation for sulfides).

Here is the essential field guide to the most significant oxide minerals you will encounter in the core shed and the field.

1. The Iron Giants: Magnetite and Hematite

Iron oxides are ubiquitous, but their specific phases provide immense clues about the redox conditions and temperature of the system.

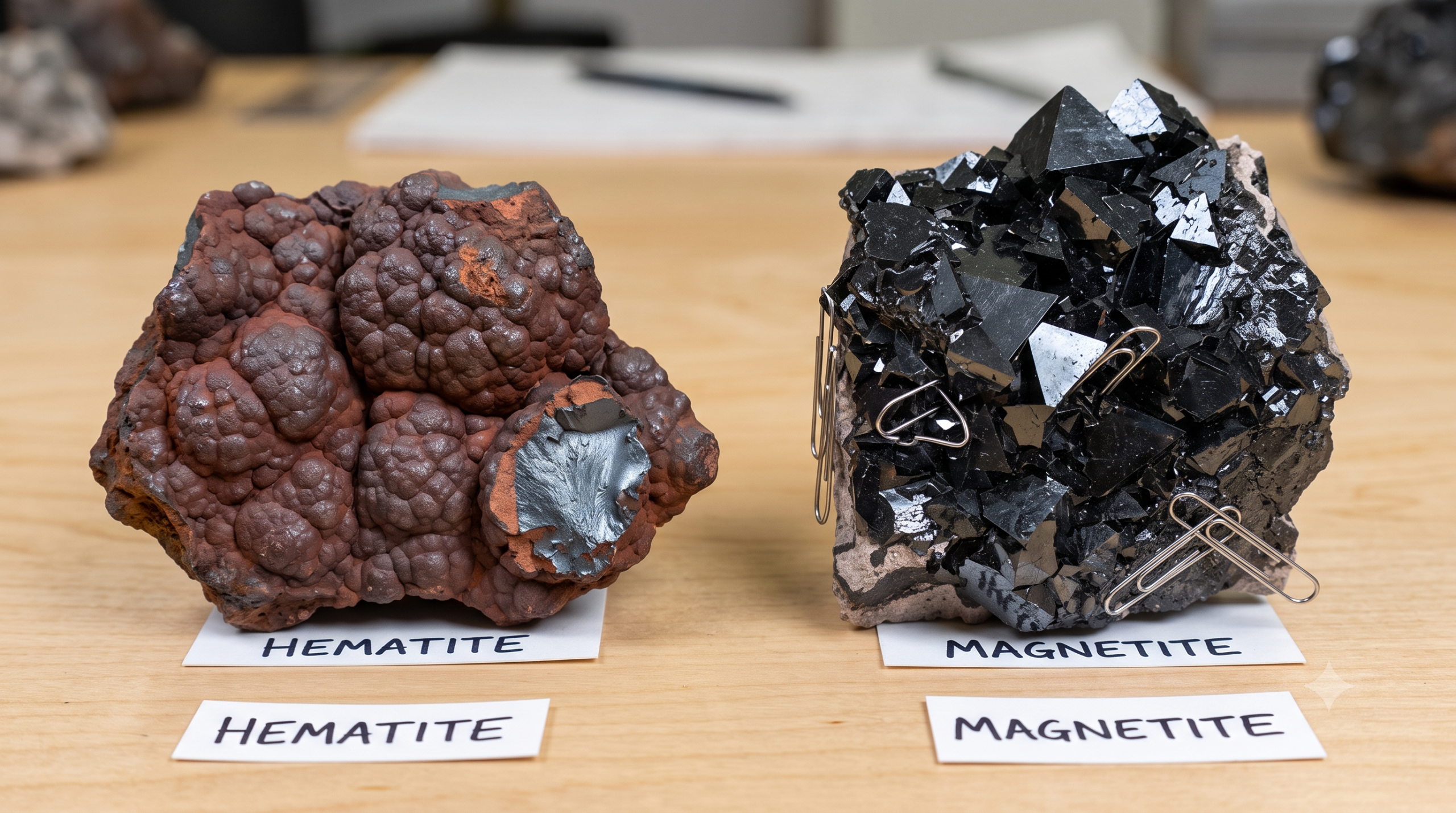

• Magnetite (Fe3O4): A heavy, black, strictly opaque mineral that is strongly magnetic. It is a primary accessory mineral in igneous rocks but forms massive, economic concentrations in magmatic segregation deposits and high-temperature skarns. In exploration, magnetite is the reason magnetic surveys (both ground and airborne) work. Identifying destruction zones where magnetite has been altered to non-magnetic minerals is a primary vector for finding hydrothermal alteration systems.
• Hematite (Fe2O3): While it can appear metallic and steel-gray (specularite), hematite is immediately identified by its diagnostic blood-red streak. It is the dominant mineral in Banded Iron Formations (BIFs). In exploration, earthy, red hematite is a major constituent of the oxidized “leached cap” or gossan overlying sulfide deposits, formed from the complete oxidation of pyrite.

2. The Copper Oxides: The Colorful Weathering Profile

When primary copper sulfides like chalcopyrite or bornite are exposed to oxygen and water near the surface, they break down. While some copper is leached downwards to form the supergene enrichment blanket, much of it remains in the oxidized zone.

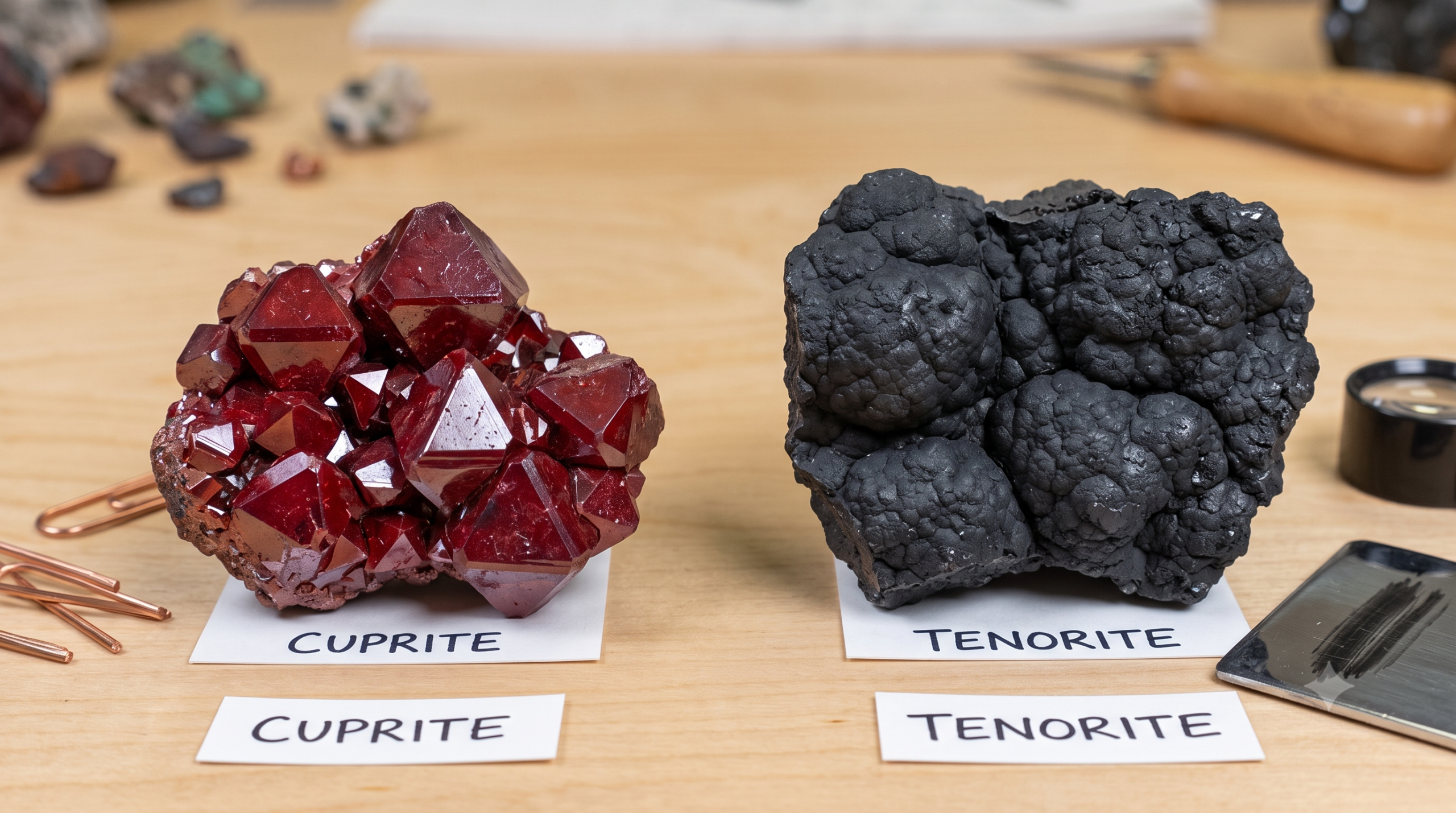

• Cuprite (Cu2O): A stunning, dark red to cochineal-red mineral. Cuprite is a high-grade copper oxide (nearly 88% Cu by weight) and often forms in the upper, highly oxidized portions of copper veins. It is relatively soft and has a very high specific gravity.
• Tenorite (CuO): Unlike the brilliant reds and greens of other copper minerals, tenorite is massive, earthy, and dull black. It frequently occurs mixed with manganese oxides (a mixture known as “wad”) in the weathered profiles of copper porphyry and structurally-controlled vein systems.

3. The Refractory Minerals: Chromite and Rutile

Some oxides are incredibly resistant to both physical and chemical weathering, meaning they survive the destruction of their host rocks to concentrate in secondary environments.

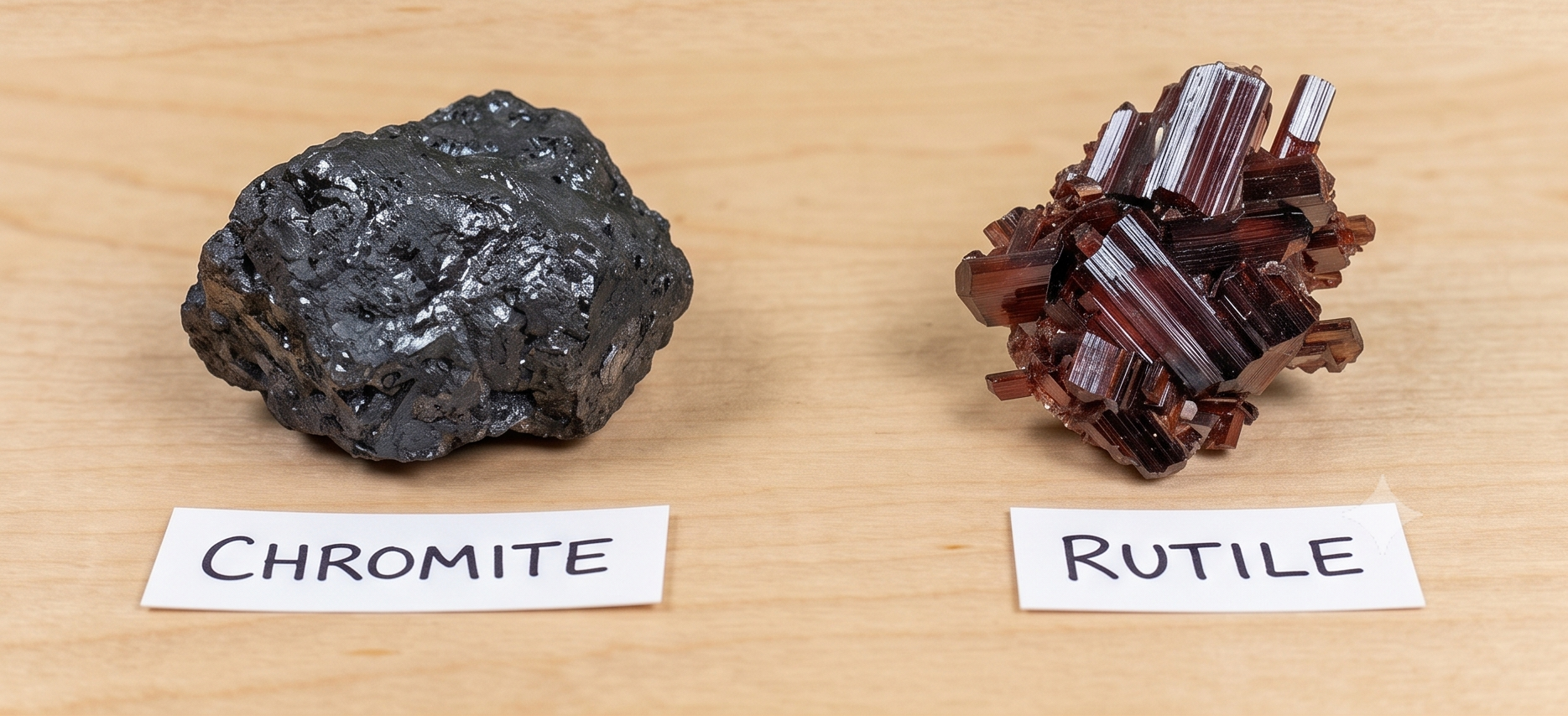

• Chromite (FeCr2O4): A dense, black oxide strictly associated with ultramafic rocks (like peridotites). It forms massive podiform lenses or extensive stratiform layers in large layered igneous complexes. It is the only economic ore of chromium.
• Rutile (TiO2): A titanium dioxide mineral that ranges from red-brown to black. Because of its extreme resistance to weathering, rutile is a heavy mineral that frequently concentrates in placer deposits (beach sands) alongside zircon and monazite. It is also a high-temperature accessory mineral in metamorphic and igneous rocks.

The Modeling Implication

When transitioning from field mapping to software environments, the transition from oxides to sulfides must be treated as a hard boundary. Interpolating grades across this boundary without utilizing a strict domain separation will result in a fatal flaw in the resource model, mixing two completely different metallurgical populations. Always model the base of oxidation first!
