The Phosphate Minerals: Agricultural Giants and REE Powerhouses

In the mineralogical classification system, phosphate minerals are formed when metallic elements bond with the phosphate anion (PO4). While they are much less common than silicates or oxides, phosphates hold a unique and critical position in both the global economy and mineral exploration.

For decades, the primary focus of phosphate geology was agricultural—mining massive sedimentary phosphorite beds to produce fertilizers. Today, however, the exploration geologist looks at certain phosphate minerals through a completely different lens: they are the primary host rocks for the world’s highly sought-after Rare Earth Elements (REEs) and critical metals.

Here is your essential field guide to the most significant phosphate minerals you will encounter in the field and the core shed.

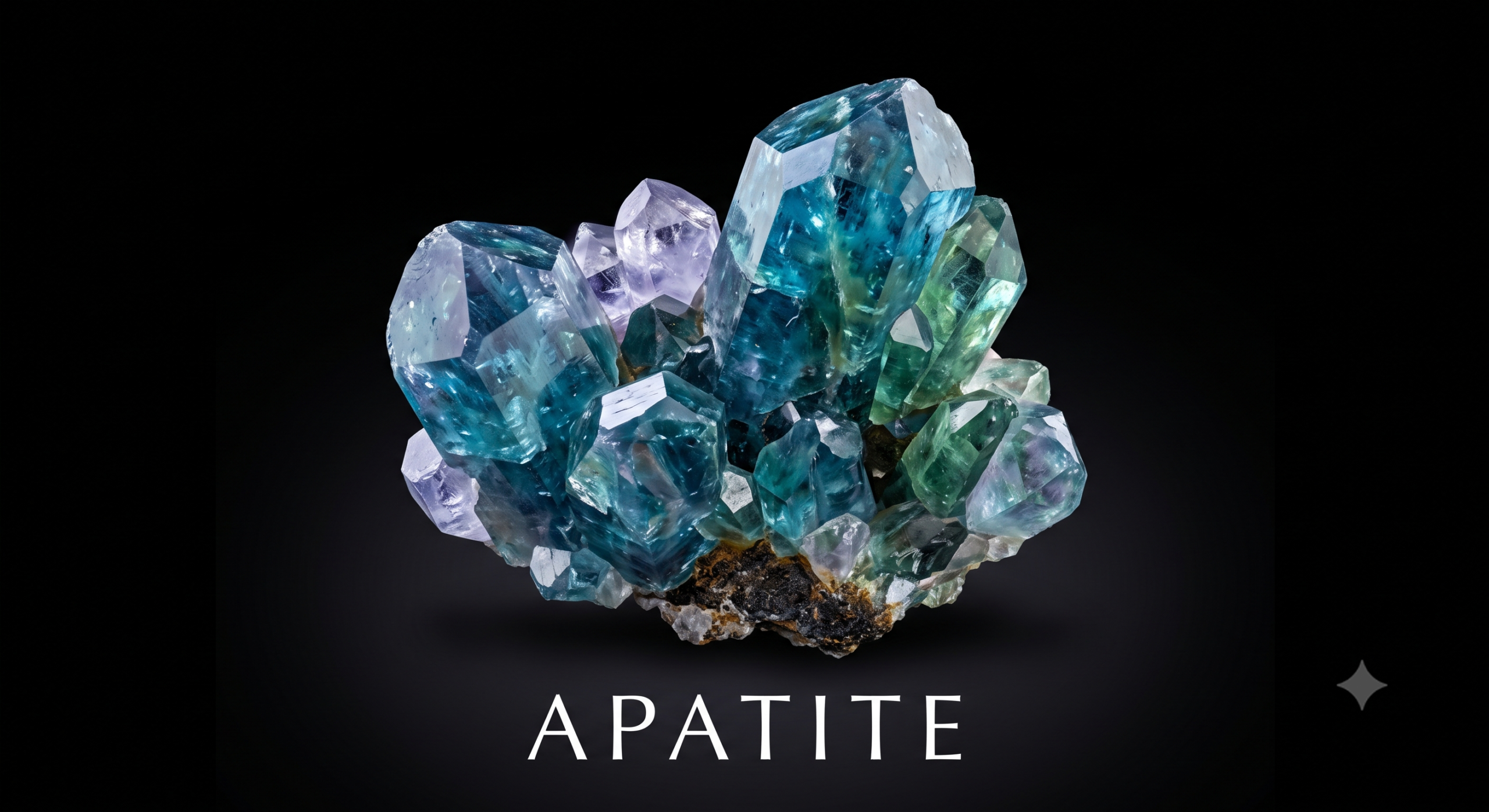

1. Apatite: The Ubiquitous Indicator

Apatite (Ca5(PO4)3(F,Cl,OH)) is by far the most abundant phosphate mineral in the Earth’s crust. It occurs as an accessory mineral in almost all igneous rocks, as well as in metamorphic and sedimentary environments.

• Field Recognition: Apatite crystals are typically hexagonal prisms and can vary wildly in color (green, blue, yellow, or clear). It represents a standard hardness of 5 on the Mohs scale.
• Exploration Significance: Beyond being the primary source of phosphorus for fertilizer, apatite is a crucial indicator mineral in exploration geochemistry. In porphyry copper systems, the halogen chemistry of apatite (the ratio of Fluorine to Chlorine) can tell geologists whether the magmatic fluids were “fertile” enough to carry and deposit massive amounts of copper and gold.

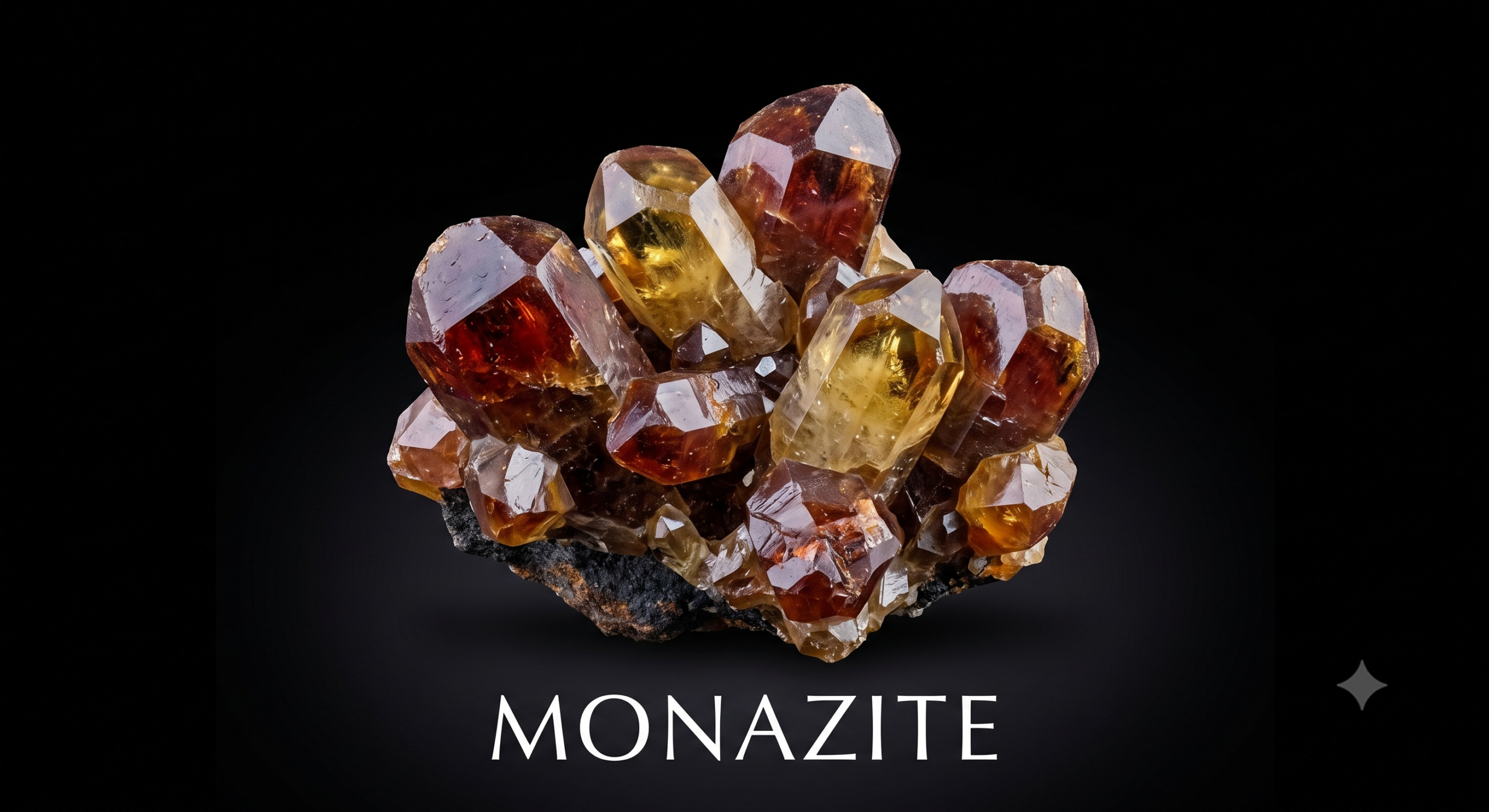

2. Monazite: The Radioactive REE Trap

Monazite ((Ce,La,Nd,Th)PO4) is a reddish-brown phosphate mineral that is exceptionally dense and highly resistant to chemical weathering.

• Field Recognition: Because of its resistance to weathering and high specific gravity, monazite behaves like native gold or rutile, concentrating heavily in placer deposits (beach sands and riverbeds).
• Exploration Significance: Monazite is one of the most important ore minerals for Rare Earth Elements (such as Cerium, Lanthanum, and Neodymium) which are critical for manufacturing modern electronics and powerful magnets. However, monazite almost always contains significant amounts of Thorium (Th) and Uranium (U), making the mineral highly radioactive. When logging core or mapping in the field, a handheld scintillometer or gamma-ray spectrometer will immediately spike when encountering monazite-rich zones.

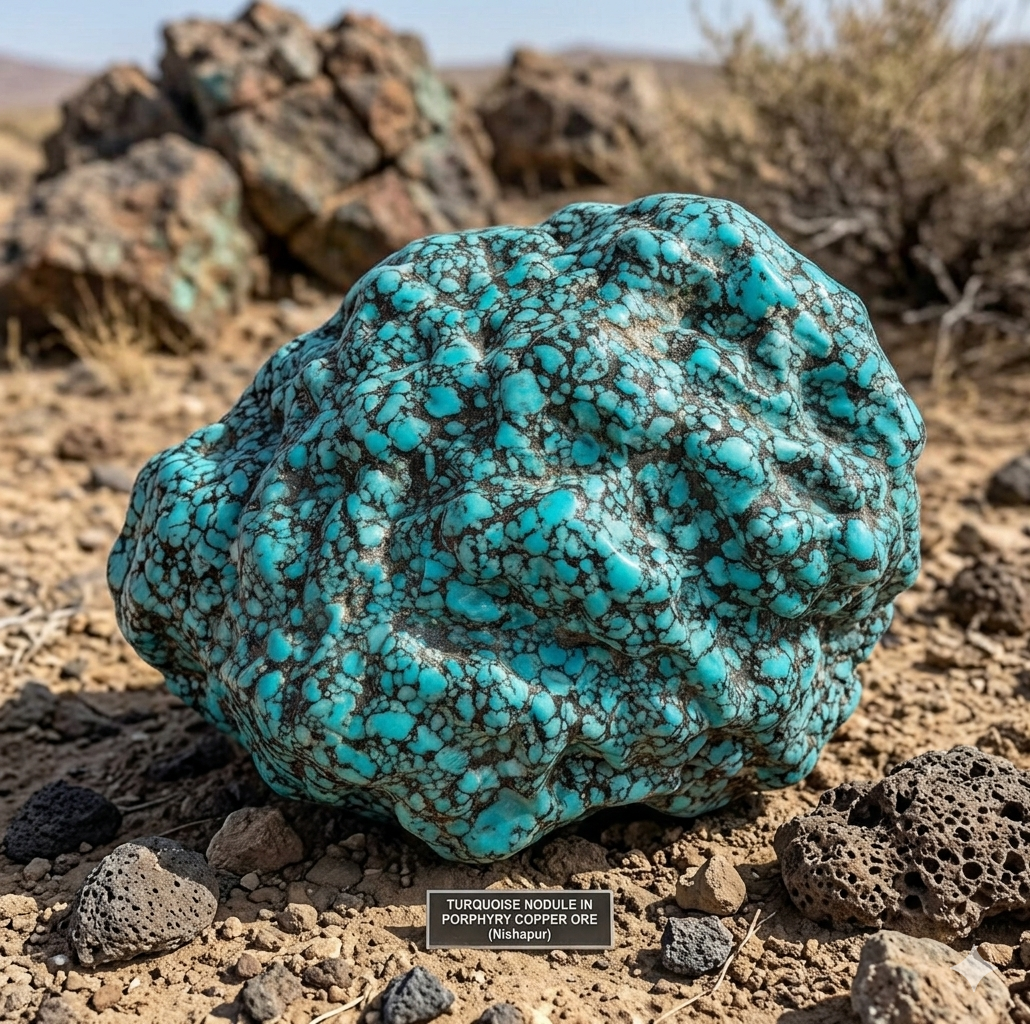

3. Turquoise: The Supergene Copper Phosphate

Turquoise (CuAl6(PO4)4(OH)8·4H2O) is a secondary mineral that forms almost exclusively in the highly weathered, arid, oxidized zones of copper deposits.

• Field Recognition: Instantly recognizable by its striking opaque, blue-to-green color. It typically forms massive, cryptocrystalline nodules or fills late-stage fractures and veinlets in the host rock.
• Exploration Significance: While historically prized as a gemstone, for the exploration geologist, turquoise serves as a glaring visual vector. If you are mapping in a barren, arid terrain and spot turquoise veinlets, you are standing in the leached cap of a copper-bearing system. It is the direct result of acidic, copper-rich fluids reacting with phosphorus and aluminum in the host rock during weathering.

The Modeling Implication

When exploring for REE-bearing phosphates like monazite or specific apatite domains, the geochemical data is heavily reliant on multi-element analysis. In software like ioGAS, plotting phosphorus against specific REEs or plotting Thorium/Uranium ratios is essential to distinguish the high-grade domains. Once these geochemical signatures are identified, they can be imported into 3D modeling packages to constrain the geological domains accurately, ensuring the high-radiation and high-REE zones are strictly separated from barren lithologies.

Resource Modeling Considerations

When evaluating sedimentary phosphorite beds, exploration geologists must meticulously constrain the structural boundaries within their 3D block models. Accurate grade interpolation of P2O5 concentrations is absolutely critical. Even minor spatial fluctuations in the ore grade can significantly impact the economic feasibility of downstream metallurgical processing and the overall efficiency of bulk fertilizer production.
